PORT OF KRIBI

MANAGEMENT
Chair of the Board of Directors: Jean Paul SIMO NJONOU
General Manager: Patrice MELOM
Deputy General Manager: Harouna BAKO

Other Port Authorities
Harbor Master : Bertrand NDI MENDUGENA
Email: bertrand.ndi@pak.cm - Mob. : 637 421 940
Operation Manager : Michael MAMA AWOUMOU
Conseiller Technique N°1 : Modeste Jocelin AKOO

Contact
P. O. Box: 203 Kribi-Cameroun
Tel: (237) 242 653 033 / Fax: (237) 222 235 340
Email: contact@pak.cm
www.pak.cm

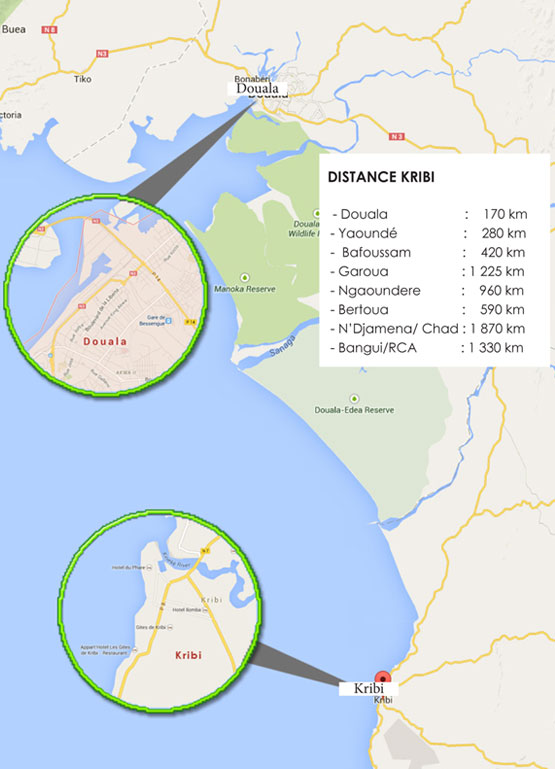

PORT LOCATION
- Located 35 km from the town of Kribi in the locality of Mboro.
- Built on a net surface area of about 24 ha.
- Backed by a land reserve of more than 26,000 ha.
- Surrounded by countries of the hinterland to the East side of the Atlantic Ocean, in the Gulf of Guinea, thus placing the country at the heart of North-South maritime lines.

PORT TYPE
- Deep-sea port connected to the sea by a 650 metre long.
- 200 metre wide and 15 metre deep channel.
- 600 m diameter turning zone and is
- Protected from the dominant swell by a 1350 m embarkment dike sealed by a wing-wall.

PORT CAPACITY
- Depth: 16 metres at quay.
- Channel: Width: 200 metres, Turning basin: 600 metres, Dyke: 1,150 metres,
- Quay: 615 metres.
- Multi-purpose terminal: 265 metres - Capacity: 1,2 Mt.
- Roro Quay: 35 metres.
- Container Terminal: 350 metres
- Capacity: 300 000 TEUs
- Sotrage : Capacity: 10 000 TEUs.
- Surrounded by (CAR and Chad).

CONNECTIVITY
- The Port is currently connected to town by an access road of
- Road Accessibility 32.5 km long, 7.5 m wide

SHIPPING LINES
Containers
- CMA CGM
- Maersk
- Marguisa
- Nile Dutch

Vrac
- Cosco
- Grand Peace Shipping Line
- Sinoway

I - CONTAINER TERMINAL - Consortium Bolloré / CMA CGM / CHEC

Container Berth : Length 350.50 m
Storage Capacity : 50 000 TEUS / 84 000 m2

Equipment:
2 Gantry crane for containers of 61 ts lifting capacity
5 RTG

Multipurpose Berth : Length 265 m
Open Yard : 250 000 m²
2 rails mobile cranes of 40 ts and 25 ts lifting

RoRo Berth :
Full stern Ramp. Length 20 m / Width 20.60 m

Warehouse : Yet to built

Operational date : By end of 1st half 2016

VESSEL CALL PLANNING


DOCUMENT FROM TO DEAD LINE BY E-MAIL
    ARRIVAL
NOTICE OF ARRIVAL SHIPPING AGENT HARBOUR MASTER 72 HRS BEFORE ARRIVAL harbourmaster@pak.cm
charles.kontelizo@pak.cm
COMPULSORY SERVICES REQUEST SHIPPING AGENT/
SHIPS MASTER
ISPS DECLARATION
BERTHING ASSIGNMENT
REQUEST (DAPQ/BAR)
SHIPPING AGENT HARBOUR
MASTER
48 HRS BEFORE
ARRIVAL
harbourmaster@pak.cm
charles.kontelizo@pak.cm
FAL FORMS (1 – 7) SHIPPING AGENT/
SHIPS MASTER
LOADING –
DISCHARGING PLAN
SHIPPING AGENT
HEALTH DECLARATION SHIPPING AGENT/
SHIPS MASTER
MARPOL DECLARATION SHIPPING AGENT/
SHIPS MASTER
HARBOUR
MASTER
48 HRS BEFORE
ARRIVAL
harbourmaster@pak.cm
charles.kontelizo@pak.cm
PILOT REQUEST SHIPPING AGENT HARBOUR
MASTER
24 HRS BEFORE
ARRIVAL
harbourmaster@pak.cm
charles.kontelizo@pak.cm

DEPARTURE
NOTICE OF DEPARTURE SHIPPING AGENT HARBOUR
MASTER
24 HRS BEFORE
DEPARTURE
harbourmaster@pak.cm
charles.kontelizo@pak.cm
PILOT REQUEST SHIPPING AGENT HARBOUR
MASTER
24 HRS BEFORE
DEPARTURE
harbourmaster@pak.cm
charles.kontelizo@pak.cm

NB: ALL OTHER APPLICATIONS FORMS ARE AVAILABLE TO THE HARBOUR MASTER OFFICE.

THESE FORMS SHOULD BE COMPLETELY: FILLED, SIGNED AND TRANSMITTED TO THE HARBOUR
MASTER OFFICE
TEL : +237 673 409 765

KRIBI PORT TARIFFS


Decision N° 0012/APN/DG/DEPDP/CE-CTDQ of 17/09/2018
Validity 01st October 2018

PORT DUES BASED ON VESSEL
- All the costs are indicated in Euro and invoices to be paid in Euro, XAF or any other currency at daily ROE.
- All the costs indicated without VAT.
- All the vessels calling Kribi port will pay a due named «ISPS safety fee» which amount is 5% of the total FDA.
- Vessels are regrouped into 7 classes as follows:
Vessel volume = LOA x B x S draft -- S draft to be > 0,14 x √(L x B



Class Volume (cbm)
  0 - 5 000
2 5 001 - 10 000
3 10 001 - 30 000
4 30 001 - 70 000
5 70 001 - 100 000
6 Over 100 000
7 Others***

Others*** = Fishing vessels, Supply and others.

ENTRY FEES


Class Volume (cbm) Tariff(Euro/cbm)
  0 - 5 000 Lumpsum 750
2 5 001 - 10 000 Lumpsum 800
3 10 001 - 30 000 Lumpsum 850
4 30 001 - 70 000 0,030
5 70 001 - 100 000 0,029
6 Over 100 000 0,028
7 Others*** Lumpsum 750

* For vessel oc class 4, minimum invoiced per call/vessel: 900 €



PILOTING FEES


* Rates are fixed in Euro/Cbm) and per time slot of 02 hours.
* Any time slot engaged or begun will be totally charged.



Class Volume (cbm) Tariff(Euro/cbm)
  0 - 5 000 Lumpsum 500
2 5 001 - 10 000 Lumpsum 550
3 10 001 - 30 000 Lumpsum 600
4 30 001 - 70 000 0,017
5 70 001 - 100 000 0,016
6 Over 100 000 0,015
7 Others*** 0,010



Minimum invoice :
- Vessels from class 4 : 750 €
- Vessels of class 7 : 400 €

* Vessel shifting
Piloting for vessel shifting : 50% of normal piloting fees
- Minimum vessels from class 1 to 6 : 500 €
- Minimum vessels of class 7 : 300 €
Shifting without pilot (1-2-6) : 100 € per movement.

* Penalties for delay
Any changes of Entry/Sailing or shifting time more than 2 hours before
scheduled time will pay a penalty of : 200 €

* Penalties for unnecessary displacement : 300 €
In addition of delay penalties.

* Pilot security watch dues inside pilotage area : 300 €/hour.

* Piloting during night time (18h00-06h00) on Sat/Sun or holidays
40% surcharge.

* Offshore Piloting

OFFSHORE PILOTING FEES ( Euro per m3)
  GRT Up 70 000 Ts GRT Over 70 001 Ts
Piloting - day 0,033 0,044
Piloting - Night 0,047 0,063
Unnecessary Displacement - Day 0,033 0,044
Unnecessary Displacement - Night 0,047 0,063
Piloting Waiting per Hour - Day   0,193
Piloting Waiting per Hour - Night   0,289

Pilot retention per Hour - Day 58,4
Pilot retention per Hour - Night 87,6



* Safety Watch for operations in port
Mobilization per port officer : 20 € per Hour.

HARBOUR DUES
* Quay dues alongside the quay.

Volume (cbm) PC/RORO
(Euro/m3/Day)
Other Vessels
(Euro/m3/Day)
Class Volume (cbm) PC/RORO
(Euro/m3/Day)
Other Vessels
(Euro/m3/Day)
1 0 - 5 000 0,033 0,04
2 5 001 - 10 000 0,031 0,04
3 10 001 - 30 000 0,029 0,04
4 30 001 - 70 000 0,027 0,04
5 70 001 - 100 000 0,025 0,04
6 Over 100 000 0,024 0,04
Minimum invoiced for vessels
from class 1 to 6
1 000 1 000


* Quay dues for fishing vessels and supply boat


Vessel GRT (Euro/Day)
0 - 99 61
100 - 199 150
200 - 500 500
Above 500 750


Anchorage stay
- Vessels from class 1 to 6 : 50% of quay dues - Minimum 300 €
- Vessels of class 7 : Minimum 200 €

* Rade due for commercial vessels is free

from 1 to 8 days 40%
from 1 to 8 days 30%


Above rates are applied on anchorage stay tariff.

* Offshore dues (Tankers - LPGC - Barges)
- Per vessel volume per Day : 0,015 €/Cbm/Day
- Per tonnage of crude / refined loaded : 0,014 €/Ton
GRT : 0 - 70 000 Ts : 15 000 € per month
Above 70 001 Ts : 25 000 € per month.

* Offshore dues (Supply boats and others) : 100 € per movement.

WHARFAGE DUES

* Wharfage dues for other vessel at TPK.

Cargo volume (Tons) Tariff (Euro/mt)
5 001 - 10 000 0,17
Over 10 000 0,14
Minimum invoiced 900


* Wharfage dues at anchorage or any other point without transshipment.
Charged by 40 % of above tariff.
* Wharfage dues on TC (Excluding transshipment)

Containers Full Empty
TEU 5 1,5
Others types / IMDG TC 10 3

* Wharfage dues on TC (Full Cycle)

Containers Full Empty
TEU 3 3
Others types / IMDG TC 6 6


Minimum invoiced : 500 €
SHIP SECURITY


Number of day Euro/Day
1 - 3 DAYS 100
4 - 6 DAYS 87
7 - 20 DAYS 75
Over 21 DAYS 63


ENVIRONMENT SECURITY

Volume Euro/Day
0 - 5 000 m3 12,20
5 001 - 20 000 m3 60,98
20 001 - 150 000 m3 121,96
Above 150 000 m3 182,94


PILOTING BONUS

    Shifting   Offshore Security
Entry Waiting   Entry watch
Exit Unnecessary Anchorage Exit
Day 14 14 30 0,31/m3 34/Hour
Night/sat/sun/Holidays 21 21 45 0,47/m3 51/Hour


FEE FOR PERMITS FOR SPECIAL WORK (Day time only)

OT WORKS Rate in Euro per Day

- Welding 600
- Grinding 300
- Grinder and flame cutting 400
  COLD WORKS

- Life raft lauching 400
- tank cleaning 300
- Painting 300
- Overboard 300

B) TOWAGE AND MOORING TARIFFS

DECISION N°0007/APN/DG/CTI
KRIBI PORT TOWAGE AND MOORING TARIFF

I- TOWAGE TARIFF

Based on vessel's GRT as per Lloyds Register Ships
Rates are in Euro and calculated per hour/tug with a minimum of 01 hour for invoicing.
02 tugs/01 hour each. 02 tugs assistance is compulsory for each vessel over 10 000 GRT.

Tariff schedule :

GRT Euro (€) GRT Euro (€)
From To From To
0 1 000 187 45 000 49 999 1 895
1 001 2 000 250 50 000 54 999 2 087
2 001 3 000 264 55 000 59 999 2 279
3 001 4 000 292 60 000 64 999 2 471
4 001 5 000 316 65 000 69 999 2 663
5 001 6 000 347,5 70 000 74 999 2 855
6 001 7 000 375 75 000 79 999 3 047
7 001 8 000 399 80 000 89 999 3 335
8 001 9 000 430 90 000 99 999 3 719
9 001 9 999 455 100 000 109 999 4 103


CALCULATION

  • Tariffs are calculated as follow: 455 € + 0,0384 € x tens TJB above 10 000 TJB.
  • A 50% surchage will be applied for any assistance provided :

  • - Between 18h00 and 06h00
    - On Saturday and sunday (from 18h00 till monday 06h00)
    - On public holiday as from 18h00 the day before till 06h00 after holiday.


II - MOORING TARIFF


Based on vessels GRT as per Lloyds Register ships.
All the rates are fixed in euro and calculated per hour with a minimum of 01 hour.

Mooring tariff schedule :

GRT Euro (€) GRT Euro (€)
From To From To
600 1 000 67,5 45 000 49 999 572
1 001 2 000 90,5 50 000 54 999 608
2 001 3 000 99 55 000 59 999 644
3 001 4 000 101 60 000 64 999 680
4 001 5 000 105 65 000 69 999 716
5 001 6 000 109 70 000 74 999 752
6 001 7 000 116 75 000 79 999 788
7 001 8 000 117 80 000 89 999 842
8 001 9 000 123,5 90 000 99 999 914
9 001 9 999 125 100 000 109 999 986

CALCULATION
  • Tariffs are calculated as follow: 230,5 € + 0,0072 € x tens TJB above 10 000 TJB.
  • A 50% surchage will be applied for any assistance provided :

  • - Between 18h00 and 06h00
    - On saturday and sunday (from 18h00 till Monday 06h00)
    - On public hiliday as from 18h00 the day before till 06h00 the after the holiday.



III - OTHER CHARGES

Other charges
Tug waiting time caused by agent per hour,
hours being due once engaged.
Above tariff will be applied
Assistance to Dead ship 50% surchage on above tariff
Charges for vessel movement cancelatnio 1 hour / tug


For any other request out of above mentioned list of other charges or assistance out of port limit, the tug company can negociate terms directly with the requestor, subject to authorization of the licenser and tug availability.


V - SERVICE REQUEST

1) Towage & mooring services are requested by any means which will be advised by the supplier in accordance licenser with copy harbour master.

2) Any vessel calling kribi port should advise notice of arrival as follows:
  1. Immediately further sailing from previous port or after receipt of voyage instruction to proceed to kribi port.
  2. 72 hours
  3. 48 hours
  4. 24 hours
  5. 12 hours
  6. 06 hours
  7. 01 hour before arrival time at the place were tug will join the vessel.

3) In addition of ETA, below below details to be provide to Harbour Master 01 hour max before ETA :
  1. Vessel name and call sign;
  2. Maximum arrival draft;
  3. Any change of arrival draft or any details witch could affect towage assistance;/li>
  4. Disponibilité de la jetée et emplacement du poste d'amarrage;
  5. ETD

4) Harbour Master shoul be informed on any change in ETA or ETD.
In case of changes of more than 2 hours with regards to initial ETA, Vessel should promptly notify Harbour Master. Tug assistance request can be amended till 48 Hours before the date & time initially planned.

5) Any vessel anchored in kribi port water should notify harbour Master as follows :
  1. 12 Hours;
  2. 06 Hours;
  3. 01 Hours prior ETA at the place where the tug willoin the vessel./li>
  4. Port is normally equiped with 02 tugs. In case of needs of more than 02 tugs, Harbour Master should advise the Tug Company 10 days prior ETA. Cost of this 3rd tug will be discussed and fixed between tug company and contractors prior operation.
BOARDING HANDLING CHARGES AT CONTAINER TERMINAL
Decision N° 0012/APN/DG/DEPDP/CE-CTDQ of 17 September 2018

(Applicable since October 1, 2018)
All the costs are indicated in Euro, VAT 19,25%) to add.

LOADING & DISCHARGING 20' TC 40' TC
FULL EMPTY FULL EMPTY
1 Container - Dry or Reefer 78,00 57,00 116,00 85,50
2 Traffic tax 6,30 3,60 9,00 5,40
3 Units requiring special equipment On quote


USE OF GANTRY CRANE 20' TC 40' TC
FULL EMPTY FULL EMPTY
1 Container - Dry or Reefer 40,50 61,50
2 For Hatch Cover per movement 61,50
3 For Twistlock 40,50


SHIFTING 20' TC 40' TC
FULL EMPTY FULL EMPTY
1 Ship/Ship - Container Dry of Reefer 96,00 70,00 144,00 106,00
2 Ship/Ship - Units requiring special equipment On quote
3 Ship/Shore/Ship - Container Dry or Reefer 141,00 103,00 211,50 156,00
4 Ship/Shore/Ship - Units requiring special equipment On quote
5 Not planned shifting 10% surcharge on above tariff
6 Miscellaneous in conventional per tons 9,00


TC IN TRANSHIPMENT 20' TC 40' TC
FULL EMPTY FULL EMPTY
  Lumpsum Board to Board per Unit 140,00 170,00
1 Dry/Reefer TC Discharging & Transfer from quay to CY - Unit 70,00     85,00
2 Dry/Reefer TC - Transfer & Loading & from CY to quay - Unit 70,00     85,00


STORAGE CHARGES FOR TC IN TRANSHIPMENT 20' TC 40' TC
1 Beyond 7 days of free storage 7,00 14,00


OTHER DUES 20' TC 40' TC
1 Logistical operations for visit customs containers and others 119,00 205,00
2 Swing bridge / double weighing 0,382 per Tons
  CONTAINER RENT IMPORT EXPORT
1 Franchise period 11 days (dis.vsl sailing) 5 days (arrival at PAK)
2 Bonus (goods to/from CEMAC + North Cameroon 75,00% 75,00%


(ACRONYMS)

COVVD Change of vessel, voyage or destination
CY Container Yard
IMDG Dangerous Goods
OOG Out of Gauge
TC Container


BOARDING HANDLING CHARGES AT MULI-PURPOSE TERMINAL
DecisionN° 0012/APN/DG/DEPDP/CE-CTDQ of 17 September 2018

(Applicable since October 1, 2018)
All the costs are indicated in Euro, VAT 19,25%) to add

Goods Packaging Unit Tariff
1 Cereals discharged with sucker Bulk Ton 3,40
2 Clinker, Oil wel cement Bulk Ton 4,81
3 Fertilizer, chemicals, salt, sulphur, Gypse &
Other goods in bulk
Bulk Ton 5,56
4 Steel scraps Breakbulk Ton 2,88
5 Vehicles and trucks Less than 10m3 and less 3T/Unit Ton 2,88
6 Vehicles and trucks Over 10m3 and over 3T/Unit Ton 3,60
7 Other rolling unit   Ton 14,45
      or Cbm 3,77
8 Other rolling unit Over 5T/Unit Ton 21,67
or Cbm 1,63
9 Frozen goods Any packaging Ton 6,91
10 Cement, sugar, flour, cereals in bag...>50 kgs Bags over 50 kgs Ton 3,91
11 Salt in bag Bags over 50 kgs Ton 4,39
12 Other goods in big bags Bags < / > 50 kgs Ton 5,19
13 Cement, sugar, flour, cereals in big bag Or pre-slung Ton 3,52
14 Salt in big bag Or pre-slung Ton 3,95
15 Other goods in big bags Or pre-slung Ton 4,67
16 Goods in bale Breakbulk Ton 4,95
17 Logs & Sawn timber Breakbulk Ton 6,10
18 Alumina Bulk Ton 5,85
19 Bitumen in drum Breakbulk Ton 5,75
20 Any shipment from 3 to 5T or/and W/M<0,3 Breakbulk Ton 14,45
Cbm 3,77
21 Any shipment form 3 to 5T or/and W/M<0,3 Breakbulk Ton 21,67
      Cbm 0,91
22 Others Breakbulk Ton 6,23
  TARIFF PER UNIT (Euro/Unit)
20' 40'
  OPERATION FULL EMPTY FULL EMPTY
1 Base rate 78,00 57,00 116,00 85,50
2 Gantry crane 40,50 40,50 61,50 61,50
3 Traffic dues 6,30 3,60 9,00 5,40


DECISION N° 0012/APN/DG/DEPFP/CE-CTDQ of 17 SEPTEMBER 2018
(Applicable since October 1, 2018
All the costs are indicated in Euro, VAT (19,25%) to be added.

Pilotage & Pilotage bonuses

    Entrance Sailing In/Out Out zone Berth to berth Waiting time Unnec.depl Mvt/w-pilot Immobiliz Security watch
    per mvt per mvt per mvt per mvt per mvt per mvt per mvt per mvt per hour per hour
VSL ONSHORE Day 0,017 €/m3 14 € 30 €   14 €   13 €
  Night+S.S. Holiday 0,023 €/m3 21 € 45 €   21 €
VSL OFFSHORE Day 0,031 €/m3   0,05 €/cbm     14 €   20 € 34 €
  Night+S.S. Holiday 0,047 €/m3         21 €   30 € 51 €


VSL ONSHORE & VSL OFFSHORE

* Overtime Pilotage Surcharge : Adding 40% on Pilotage Fees for Night-Saturday-Holidays.
** Bous Pilotage Surcharge : 10% of Pilotage Surcharge (In-Out-Shifting).
# PLEASE refer to Tariff (Class 4 onshore & day/night offshore)

KRIBI WEATHER 2019

From : BIS (METEOROLOGY DATA OFFICE) Po Box : 147 Douala - Cameroun
Phone : (237) 699 81 40 03 / 677 16 05 16 - Fax (237) 33 47 71 96


By : Expert Météo FONGANG KAMMO, agréé près les Cours d'Appel du Centre et du Littoral et par l'OMM

Months 2020 Forecast 2021 Forecast 30 years mean or Nomales
  Quantity Frequency Quantity Frequency Quantity Frequency
January 84,6 7 66,5 5 68,1 9
February 97,9 8 30,8 8 91,1 9
March 292,1 12 133 15 184,6 14
April 257,1 15 245,1 18 234,4 17
May 207,8 22 403 20 306,8 21
June 86,2 12 391,8 21 261,8 18
July 59,6 11 87,4 26 128,1 14
August 438,4 23 108,7 27 221 21
September 378,9 27 871,2 28 503,1 27
October 360,8 28 522,4 21 487,1 27
November 119,6 15 141,6 14 188,3 15
December     52,5 5 68,9 9


Month JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC
QTTY mm 68,1 91,1 184,3 234,4 306,8 261,8 121,8 221 503,5 487,1 188,3 68,9
FRQCY 9 9 14 17 21 18 14 21 27 27 15 9
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
